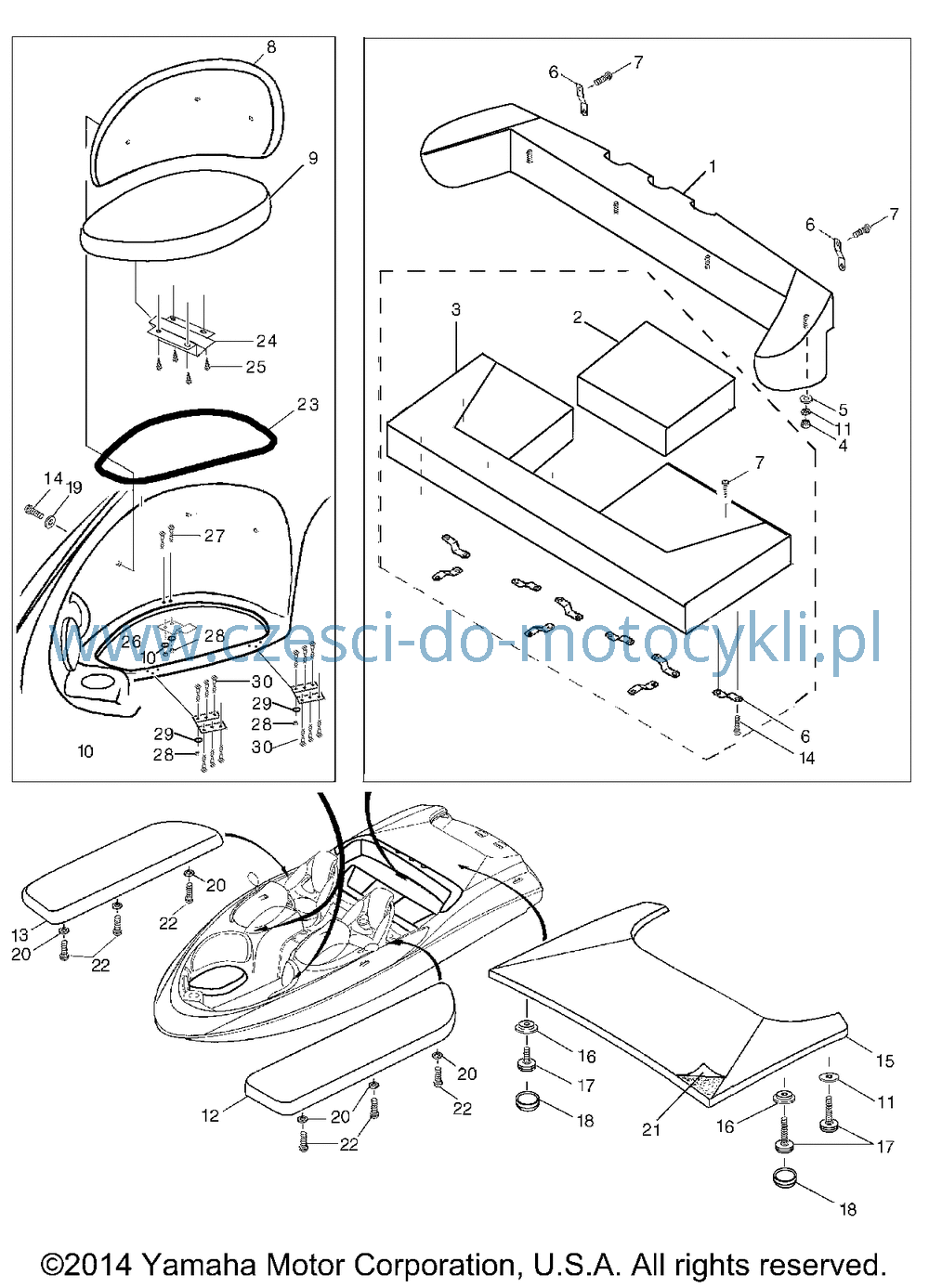

Wybierz częsci
| 1 | BACKREST 1 ELECTRIC RED F0R-U3766-70-00 ilość: 1 |
|
| 2 | CUSHION, BACK SEAT F0R-U3724-40-00 ilość: 1 |
|
| 3 | SEAT BASE ELECTRIC RED F0R-U3765-70-00 ilość: 1 |
|
| 4 | NUT, 1/4-20 90170-14S00-00 ilość: 4 |
|
| 5 | WASHER, FENDER 90209-14SA3-00 ilość: 8 |
|
| 6 | BRACKET,SEAT (9114) GP1-U3748-00-00 ilość: 8 |
|
| 7 | SCREW, #10 X 3/4" 90169-10SA1-00 ilość: 9 |
|
| 8 | BACKREST FRONT, PO ELECTRIC RED F0R-U35B2-70-00 ilość: 1 |
|
| 8 | BACKREST FRONT, RI ELECTRIC RED F0R-U35B1-70-00 ilość: 1 |
|
| 9 | CUSHION, FORE 1 ELECTRIC RED F0R-U35A1-70-00 ilość: 1 |
|
| 9 | CUSHION SEAT, FRON ELECTRIC RED F0R-U35A2-70-00 ilość: 1 |
|
| 10 | NUT, 1/4-20 90170-14S00-00 ilość: 4 |
|
| 11 | WASHER, 1/4" LOCK 90204-14S00-00 ilość: 4 |
|
| 12 | PAD 1 ELECTRIC RED PORT F0R-U36A1-70-00 ilość: 1 |
|
| 13 | PAD 2 ELECTRIC RED STBD F0R-U36A2-70-00 ilość: 1 |
|
| 14 | SCREW, 1/4-20 X 1 90149-14SA5-00 ilość: 14 |
|
| 15 | PAD, SUNDECK (RED) ELECTRIC RED F0R-U521C-70-00 ilość: 1 |
|
| 16 | WASHER F0C-U5248-00-00 ilość: 20 |
|
| 17 | SCREW, 1/4-20 X 3 90149-14SA7-00 ilość: 4 |
|
| 17 | SCREW 1/4-20X1 1/2 90149-14SA3-00 ilość: 18 |
|
| 18 | CAP (WHITE) F0R-U514F-00-00 ilość: 20 |
|
| 19 | WASHER, FENDER 90209-14SA3-00 ilość: 24 |
|
| 20 | WASHER, FENDER (1/4" 90209-14SA2-00 ilość: 6 |
|
| 21 | COVER, SUNDECK (RED ELECTRIC RED F0R-U371B-70-00 ilość: 1 |
|
| 22 | SCREW, 1/4-20 X 3/4 90149-14SB3-00 ilość: 6 |
|
| 23 | PACKING 10 F0R-U266J-10-00 ilość: 2 |
|
| 24 | LOCK, HATCH F0R-U284D-00-00 ilość: 2 |
|
| 25 | SCREW, PAN HEAD 90157-08S12-00 ilość: 8 |
|
| 26 | BRACKET, SEAT F0R-U3714-01-00 ilość: 2 |
|
| 27 | SCREW, 10-24X3/4" 90157-10S12-00 ilość: 4 |
|
| 28 | NUT, 10-24 NYLOX 90185-10S00-00 ilość: 16 |
|
| 29 | WASHER, #10 FLAT 90201-10S00-00 ilość: 12 |
|
| 30 | SCREW, 10-24 X 1 90151-10S16-00 ilość: 24 |
