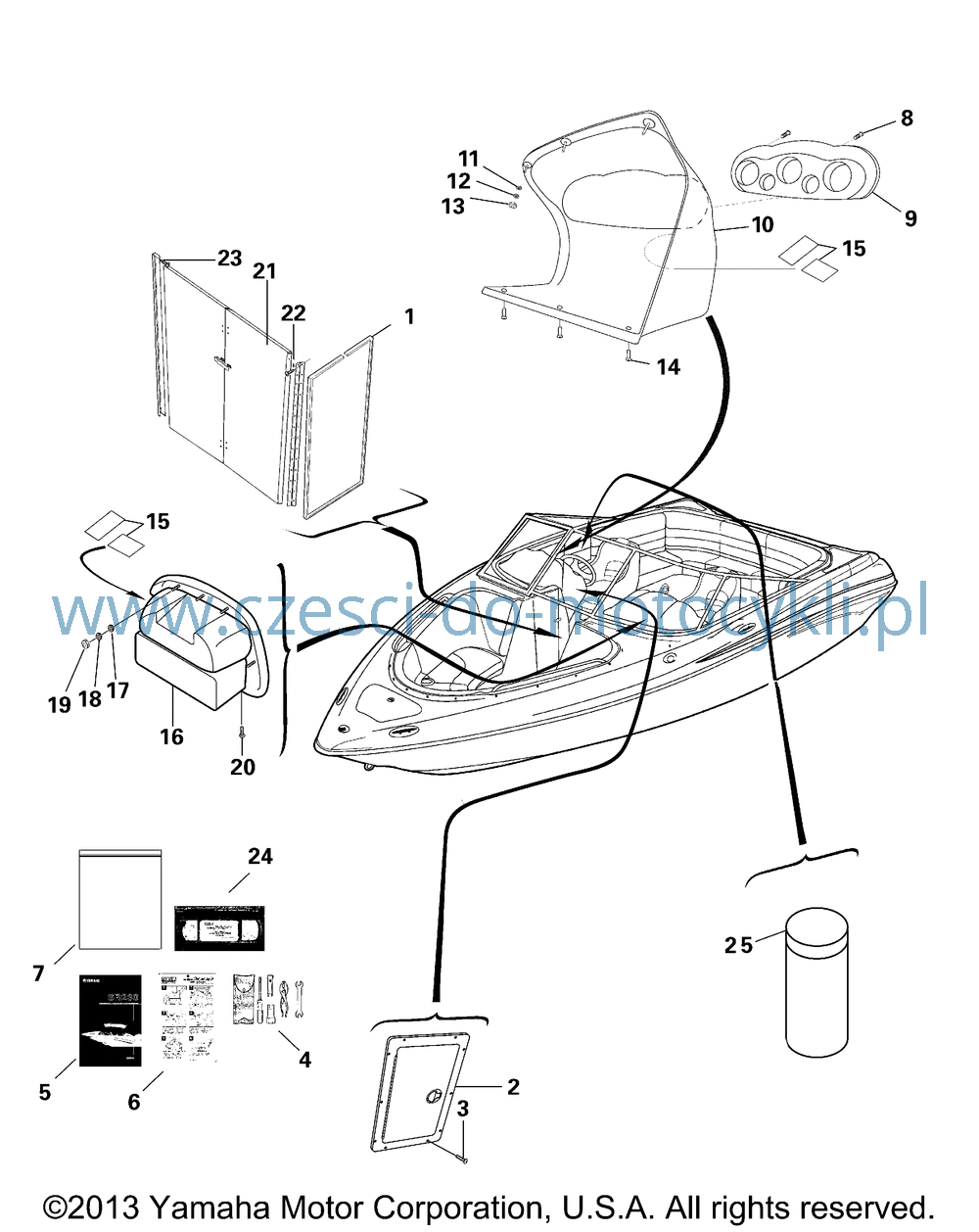

Wybierz częsci
| 1 | PACKING 7 F2D-U266F-00-00 ilość: 1 |
|
| 2 | DOOR COMP F1C-U5708-00-00 ilość: 1 |
|
| 3 | SCREW, COUNTERSUNK 90161-08SA4-00 ilość: 10 |
|
| 4 | TOOL SET F1B-65986-01-00 ilość: 1 |
|
| 5 | 04 SR230 OWNERS/OP M LIT-18626-05-66 ilość: 1 |
|
| 6 | 03-04 SR230 MODELS O LIT-189JB-00-09 ilość: 1 |
|
| 8 | SCREW 90157-10S32-00 ilość: 4 |
|
| 9 | PANEL, METER(BRONZE) F1C-U821K-00-00 ilość: 1 |
|
| 10 | INSTRUMENT PANEL (TA F1C-U8223-00-00 ilość: 1 |
|
| 11 | WASHER 90209-10SB1-00 ilość: 3 |
|
| 12 | WASHER, LOCK (#10) 90204-10S00-00 ilość: 3 |
|
| 13 | NUT 90170-10S00-00 ilość: 3 |
|
| 14 | SCREW, #10 X 3/4" 90169-10SA1-00 ilość: 3 |
|
| 15 | PAD, FUEL TANK F2A-U6632-00-00 ilość: 4 |
|
| 16 | GLOVE BOX ASSY (TAN) F1C-U1708-00-00 ilość: 1 |
|
| 17 | WASHER 90209-10SB1-00 ilość: 3 |
|
| 18 | WASHER, LOCK (#10) 90204-10S00-00 ilość: 3 |
|
| 19 | NUT 90170-10S00-00 ilość: 3 |
|
| 20 | SCREW, #10 X 3/4" 90169-10SA1-00 ilość: 3 |
|
| 21 | DOOR ASSY F1C-U5720-01-00 ilość: 1 |
|
| 22 | SCREW, #6 X 3/4 PFH 90161-06S12-00 ilość: 14 |
|
| 23 | SCREW, #8X3/4 90162-08S12-00 ilość: 5 |
|
| 25 | BOX, FIRE EXTINGUISH F1C-65983-00-00 ilość: 1 |
